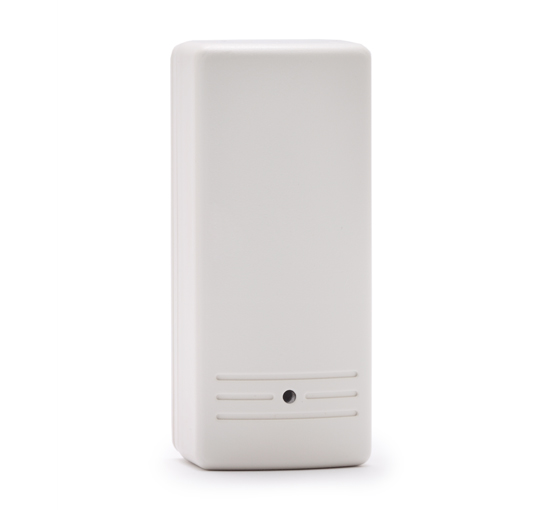

Wireless Shock Detector

The Wireless Shock Detector (RWT6S) is a 24- hour perimeter protection detector intended for internal use. Using its ability to analyze vibrations it detects attempted break-ins whenever there is an attempt to force, smash, drill or saw through a protected window, door, wall or roof white the intruder is still outside.

Category:

Description

Features

  • Digital Microprocessor with Intelligent Digital Signal Processing
  • Tri-color LED enables accurate and reliable calibration, with over-sensitive and under-sensitive indications
  • Can be mounted on different surface as: concrete, brick wall, steel, wood, glass, plywood
  • Gross attack detection
  • Encapsulated bi-morph piezo electric sensor
  • Dual stage adjustment potentiometer
  • Cover & back tamper protection
  • Includes 3V long-life lithium battery
  • Operates up to 300m (1000 ft) range (LOS)
  • Uses one of more than 16 million addresses codes
  • Fully supervised
  • Compatible with RISCO systems: Agility™, WisDom, ProSYS™, LightSYS™ , Nova
  • Available in 868MHz and 433MHz
  • Model name: RWT6S

Technical Specifications

  • Battery Type: CR123 3V Lithium Battery
  • Current Consumption: 10μA standby
  • Frequency: 433.92 / 868.65 MHz
  • Supervision Transmission: Every 15/65 minutes
  • Typical Battery Life: 5 years
  • Size: 81x35x32mm (3.2×1.37×1.27in.)
  • RF immunity: According to EN-50130-4
  • Operating temperature: 0°C to 55°C (32°F to 131°F)
  • Storage temperature: -20°C to 60°C (-4°F to 140°F)
  • Maximum humidity: 95% non-condensing
